One-Piece
Double Cupholder - Style #SP-D203S

Drawing not to scale.

The SP-D203S one-piece Double Cupholder is available in 3 different inside diameters and a uniform depth up to 2.25" deep.  Standard depth is 1.50".  Besides accommodating the normal soda can and glassware the figure "8" design also fits coffee mugs with handles.

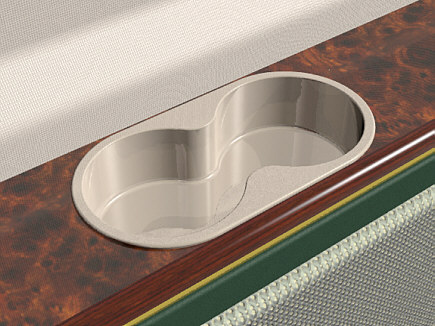

(3.25DBSP-D203S-1.50 shown above)

**Examples shown with optional plated finishes.

One-Piece - Double Cupholder - Style #SP-D203S
S p e c i f i c a t i o n s    a n d    P r i c i n g.

SERIES

Hole Cut Size

Inside Diameters

OA Dim.
Width / Length

Rim Height Above Surface

Depth*
(Standard)

Pricing

2.75DB

ID Dim. +.12

2.78" / 2.78"

3.28" / 6.31"

.09"

1.50"

please call

3.00DB

ID Dim. +.12

3.03" / 3.03"

3.53" / 6.81"

.09"

1.50"

please call

3.25DB

ID Dim. +.12

3.28" / 3.28"

3.78" / 7.31"

.09"

1.50"

please call

   *Depth is from mounting surface to bottom of cupholder.
    Optional depths available.  Maximum 2.25".
  **Quoted prices are for unplated, satin aluminum finish with no inlay fills.
***Cutout dimensions are approximate and may not include relief for all required areas.
    Minimum quantity order is 8 units.
