Two-Piece
Double Cupholder - Style #D203P

Drawing not to scale.

The D203P style Double Cupholder is available in 3 different inside diameters and comes with a one-piece uniform depth bottom cup that is 1.75" deep.
Other depths are available.  Besides glassware and beverage cans the open figure "8" style will also accommodate coffee mugs with handles.

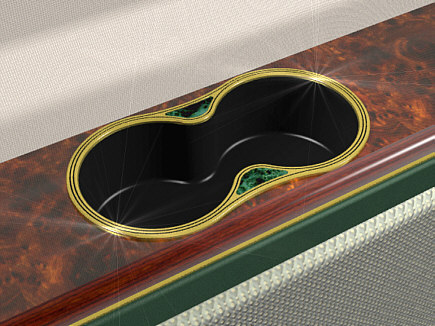

(3.25DB-D203P-1.75 shown above)

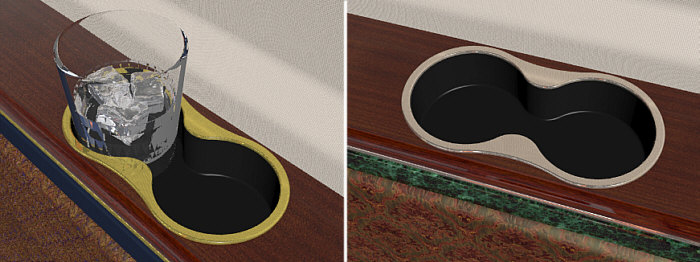

**Examples shown with optional inlays and/or plated finishes, and with standard satin black powder coat bottom cup.

Two-Piece - Double Cupholder - Style #D203P
S p e c i f i c a t i o n s    a n d    P r i c i n g.

SERIES

Hole Cut Size***

Inside Diameters

OA Dim.
Width / Length

Rim Height Above Surface

Depth*
(Standard)

Pricing

2.75DB

OA Dim. -.25

2.78" / 2.78"

3.28" / 6.31"

.09"

1.75"

please call

3.00DB

OA Dim. -.25

3.03" / 3.03"

3.53" / 6.81"

.09"

1.75"

please call

3.25DB

OA Dim. -.25

3.28" / 3.28"

3.78" / 7.31"

.09"

1.75"

please call

   *Depth is from mounting surface to bottom of cupholder.
    Optional depths available.  Maximum 2.25".
  **Quoted prices are for unplated, satin aluminum finish top appearance rims
     with no inlay fills and standard depth, satin black powder coated bottom cups.
***Cutout dimensions are approximate and may not include relief for all required areas.
    Minimum quantity order is 8 units.
    Click here for additional information on this CustomCupholder™ product.
