Two-Piece
Double Cupholder - Style #D203CT

Drawing not to scale.

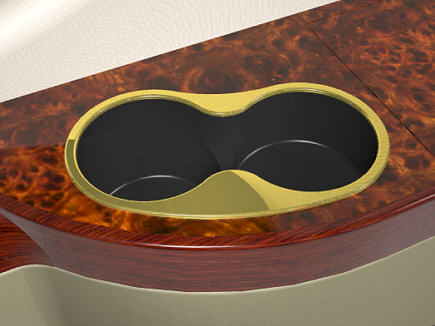

Style D203CT is specifically designed to be used along a radius.  It is available in 3 different inside diameters and many depth combinations.  Standard depths are 1.50" and 2.60" with 4.00" readily available as an option.  Each cupholder area can be a different depth and with the figure "8" design a coffee mug with handle can also be accommodated.
(3.00DB-D203CT-2.60/1.50 shown above)

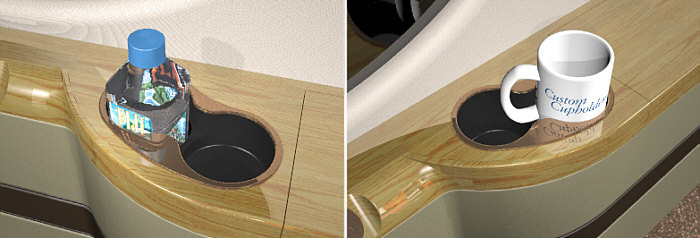

**Examples shown with optional plated finishes and with standard satin black powder coated bottom cup.

Two-Piece - Double Cupholder - Style #D203CT
S p e c i f i c a t i o n s    a n d    P r i c i n g.

SERIES

Hole Cut Size***

Inside Diameters

****OA Dim.
Width / Length

Rim Height Above Surface

Depth*
(Standard)

Pricing

2.75DB

OA Dim. -.25

2.78" / 2.78"

3.53" / 6.31"

.09"

1.50" / 2.60"

please call

3.00DB

OA Dim. -.25

3.03" / 3.03"

3.79" / 6.81"

.09"

1.50" / 2.60"

please call

3.25DB

OA Dim. -.25

3.28" / 3.28"

4.05" / 7.31"

.09"

1.50" / 2.60"

please call

    *Depth is from mounting surface to bottom of cupholder.
     Click here for information and pricing on optional spacers to increase depth.
   **Quoted prices are for unplated, satin aluminum finish top appearance rims
      with no inlay fills and standard depth, satin black powder coated bottom cups.
 ***Cutout dimensions are approximate and may not include relief for all required areas.
****Approximate.  Width dimension will depend on radius of sides.
     Minimum quantity order is 8 units.
