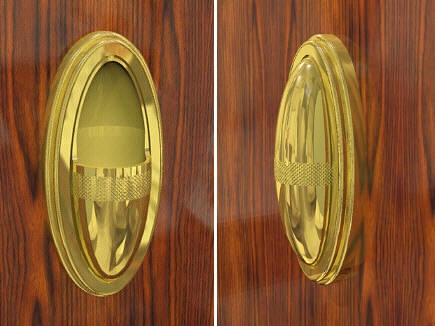

Vertical Mounted Ashtray (VMA)
to fit 0.38" to 0.75" thick panels.**

Elegant and practical.
The VMA (vertical mount ashtray) is the ideal product for a bulkhead mounted ashtray requirement in any luxury vehicle.  The rotating inner receptacle is easy to use and has detents for both the open and closed positions.  Plus the receptacle is very easy to remove (no tools required) for convenient cleaning.
P/N A0.38BLK-4 comes with a bezel surround to allow the unit to be mounted in panels as thin as 0.38 inch.**  All main parts of VMA's are precisely machined from aircraft quality 6061-T6 so assembly is accurate and straight forward.

Parts from P/N A0.38BLK-4 shown.
Cigarette shown for scale.

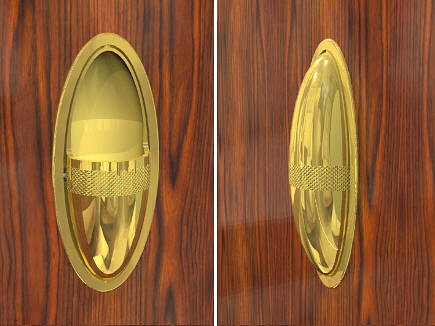

Vertical Mounted Ashtray (VMA)
to fit 0.75" and thicker panels.**

VMA - Vertical Mounted Ashtrays.
S p e c i f i c a t i o n s    a n d    P r i c i n g.

Part Number

Req'd minimum
panel thickness

Width

Length

Depth Below Surface**

Height Above Surface

Pricing

Brochure

A0.38BLK-4

0.38 inch**

2.13"

4.40"

0.40"

0.99"

please call

download

A0.75BLK-1

0.75 inch**

1.79"

4.06"

0.78"

0.62"

please call

download

  *Prices shown are for satin aluminum, unplated components.
**To fit 0.38" thk. / 0.75" thk panels there must also be 0.030" min. finish material thickness on panel.
NOTE: Installer is responsible for all installation and certification requirements.
  Click here for additional information on this CustomCupholder™ product.
