Drop-in Replacement
Appearance Rim Style #R106

End section through cupholder.
Shown with standard height cup.
Drawing not to scale.

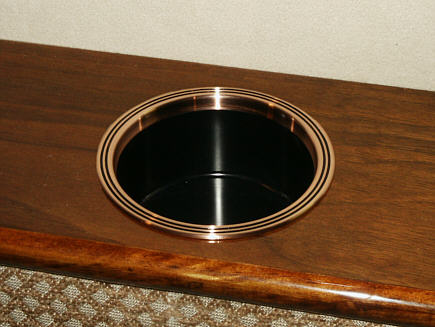

****Example shown:  Optional plated satin bronze appearance rim with
optional black inlay fills and standard satin black cup.

Premium Collection           Standard Collection          Double Collection          Custom Items

Premium Collection Cupholder with Appearance Rim Style #R106
Drop-in Replacement
S p e c i f i c a t i o n s    a n d    P r i c i n g.

SERIES

Inside Diameter

Hole Cut Size

Outside Rim Diameter

Height Above Surface

Standard Depth (S)*

Price
Each****

R3.00

3.03"**/2.96"

3.11"

3.54"

.06"

1.58"

$93.15

R3.25

3.24"***/3.17"

3.32"

3.75"

.06"

1.32"

$93.15

    *Depth is from mounting surface to bottom of cupholder.
  **Dimension at top of rim.  Dimension tapers to 2.96" inside of cup.
 ***Dimension at top of rim.  Dimension tapers to 3.17" inside of cup.
****Prices shown are for unplated top appearance rims with no inlay fills
    and standard satin black cups.  Price includes cork bottom insert (not shown).
